Foundation Analysis Examples

The Foundations Package includes the Dynamic Corner Radius/ Apex analysis for two corners and a Braking analysis for Peak Braking Force, Braking Quickness, and Average Braking Grip Factor.

The goal of the Foundations Package is to provide the driver with 3-5 concrete insights to improve their fundamental driving skills.

Braking Speed consistency for this driver is an opportunity to improve lap times significantly.  The softer transition to braking and less forceful application demonstrated in the comparison of best to third best laps highlights the opportunity.

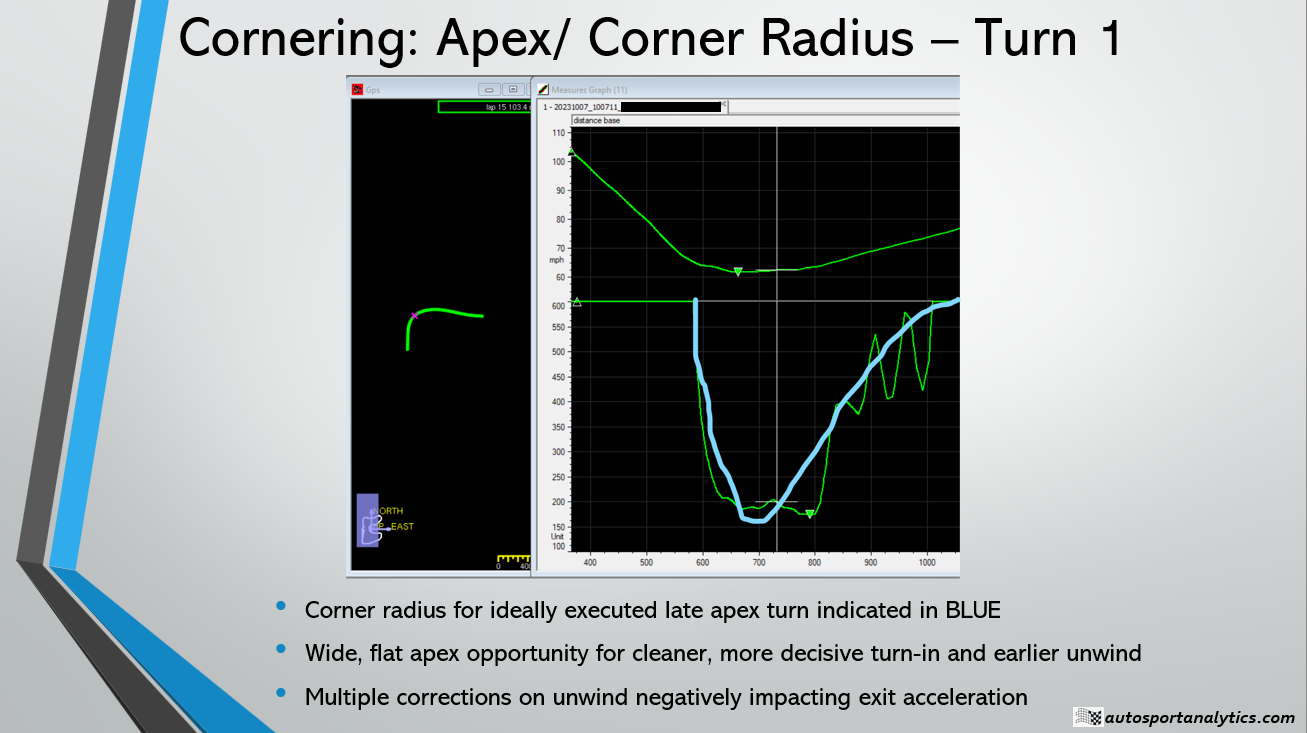

This corner radius example illustrates a driver that is turning in too soon and making multiple corrections on corner exit.  Improving the turn-in point and focusing one smooth opening of the hands on exit with increase for the entire straight following the corner.

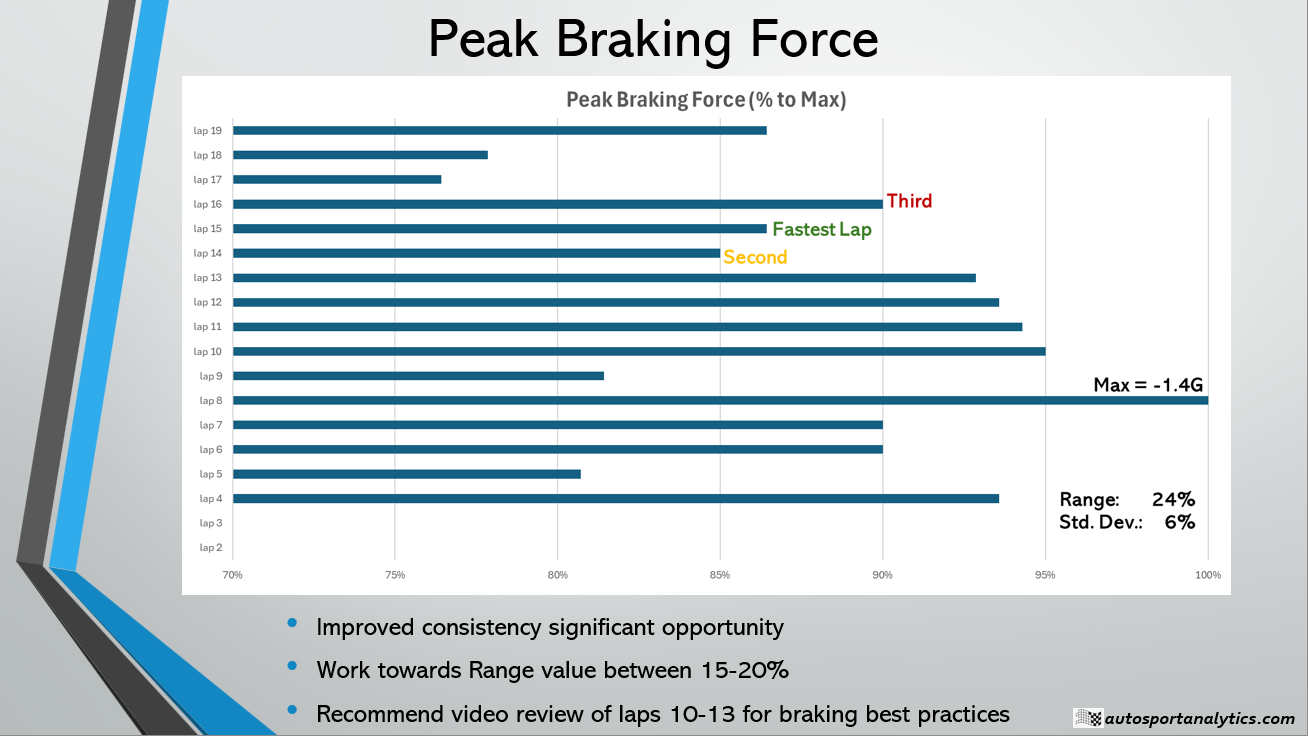

While the maximum braking G’s this driver achieved in lap 8 is substantial, the majority of laps are significantly lower, thus increasing lap times.  Video should be reviewed of lap 8 for where and how peak braking was achieved. Video review of laps 10-14 for braking points should help demonstrate and improve consistency.
